New NIST chip hints at quantum sensors of the future

Published: Thursday, May 23, 2019 - 21:22

(NIST: Gaithersburg, MD) -- Researchers at the National Institute of Standards and Technology (NIST) have created a chip on which laser light interacts with a tiny cloud of atoms to serve as a miniature toolkit for measuring important quantities, such as length, with quantum precision. The design could be mass-produced with existing technology.

As described in Optica,1 NIST’s prototype chip was used to generate infrared light at a wavelength of 780 nm, precisely enough to be used as a length reference for calibrating other instruments. The NIST chip packs the atom cloud and structures for guiding light waves into less than 1 sq cm, about one ten-thousandth of the volume of other compact devices offering similar measurement precision.

“Compared to other devices that use chips for guiding light waves to probe atoms, our chip increases the measurement precision a hundredfold,” says NIST physicist Matt Hummon. “Our chip currently relies on a small external laser and optics table, but in future designs, we hope to put everything on the chip.”

Many devices use light to probe the quantum states of atoms in a vapor confined in a small cell. Atoms can be highly sensitive to external conditions, and therefore, make superb detectors. Devices based on light interactions with atomic vapors can measure quantities such as time, length, and magnetic fields and have applications in navigation, communications, medicine, and other fields. Such devices generally must be assembled by hand.

The new NIST chip transports light from the external laser through a novel waveguide and grating structure to expand the beam diameter to probe about 100 million atoms until they switch from one energy level to another. To determine the laser light frequency or wavelength that the atoms will absorb to undergo this energy transition, the system uses a photodetector to identify the laser tuning at which only about half the light passes through the vapor cell.

The demonstration used a gas of rubidium atoms, but the chip could work with a wide range of atomic and molecular vapors to generate specific frequencies across the entire visible spectrum of light and some of the infrared band. Once the laser is properly tuned, some of the original laser light can be siphoned off as output to use as a reference standard.

The NIST chip might be used, for example, to calibrate length measurement instruments. The international length standard is based on the speed of light, equivalent to the wavelength of light multiplied by its frequency.

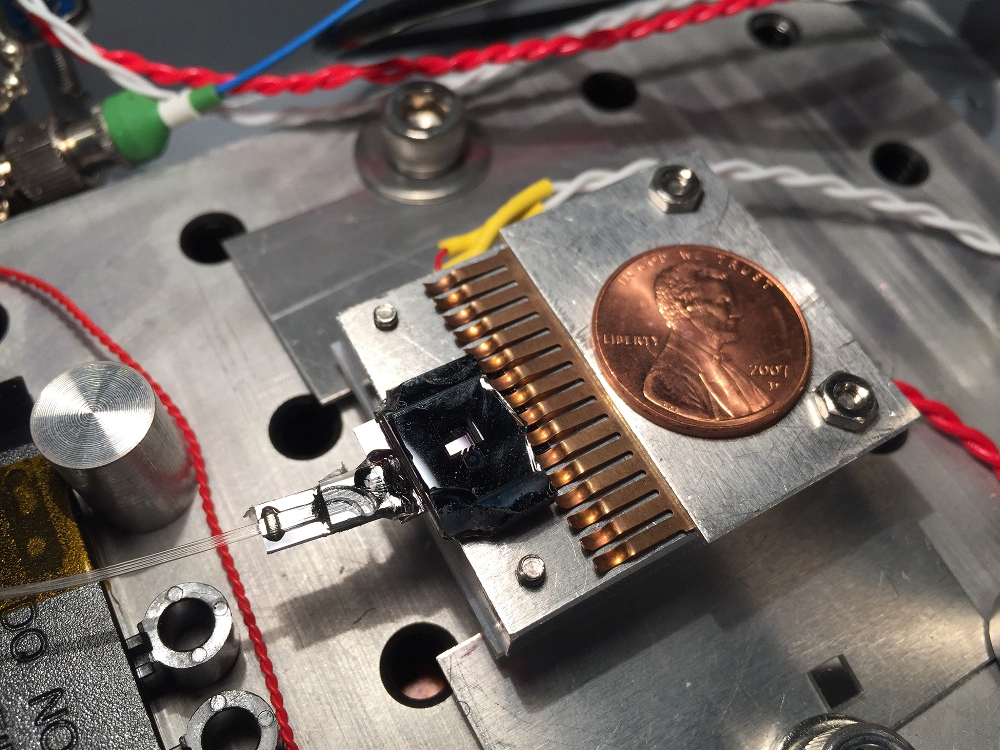

NIST’s prototype chip for measuring important quantities such as length with quantum precision. The device works by using a laser to probe atoms to generate infrared light at a precise wavelength. The NIST chip packs a tiny cloud of atoms and structures for guiding light waves into less than 1 sq cm. The atoms are contained in a vapor cell—the square window on top of the chip, which is surrounded by black epoxy holding a fiber-optic array. The penny is a scale reference.

More importantly, however, according to NIST group leader John Kitching, the new chip shows that lasers and atomic vapor cells could potentially be mass-produced together like semiconductors, using silicon materials and traditional chip-manufacturing techniques, instead of the current manual assembly of bulky optics and blown-glass vapor cells. This advance could apply to many NIST instruments, from atomic clocks to magnetic sensors and gas spectrometers.

The NIST chip is 14 mm (about 0.55 in.) long and 9 mm (about 0.35 in.) wide. The waveguides are made of silicon nitride, which can handle a wide range of light frequencies. The vapor cell is micromachined silicon with glass windows and is similar to those used in NIST’s chip-scale atomic clock and magnetometer, also developed by Kitching’s research group.

The new device measures frequency with a precision of 1 part error in 10 billion at 100 sec., a performance verified by comparison to a separate NIST frequency comb. This performance level is very good for something so small, although full-scale lab instruments are more precise, Kitching says.

The research is part of the NIST-on-a-Chip program, aimed at creating prototypes for small, inexpensive, low-power and easily manufactured measurement tools that are quantum-based, and thus, intrinsically accurate. These tools are intended to be usable virtually anywhere, such as in industrial settings for calibration of instruments. Under this program, NIST-pioneered technologies would be manufactured and distributed by the private sector.

1 Hummon, M.T., Kang, S., Douglas, D.G., Bopp, G., Li, Q. Westly, D.A., Kim, S., Fredrick, C., Diddams, S.A., Srinivasan, K., Aksyuk, V., and Kitching, J.E., “Photonic Chip for Laser Stabilization to an Atomic Vapor with 10−11 Instability,” Optica, DOI: 10.1364/OPTICA.5.000443, April 10, 2018.
